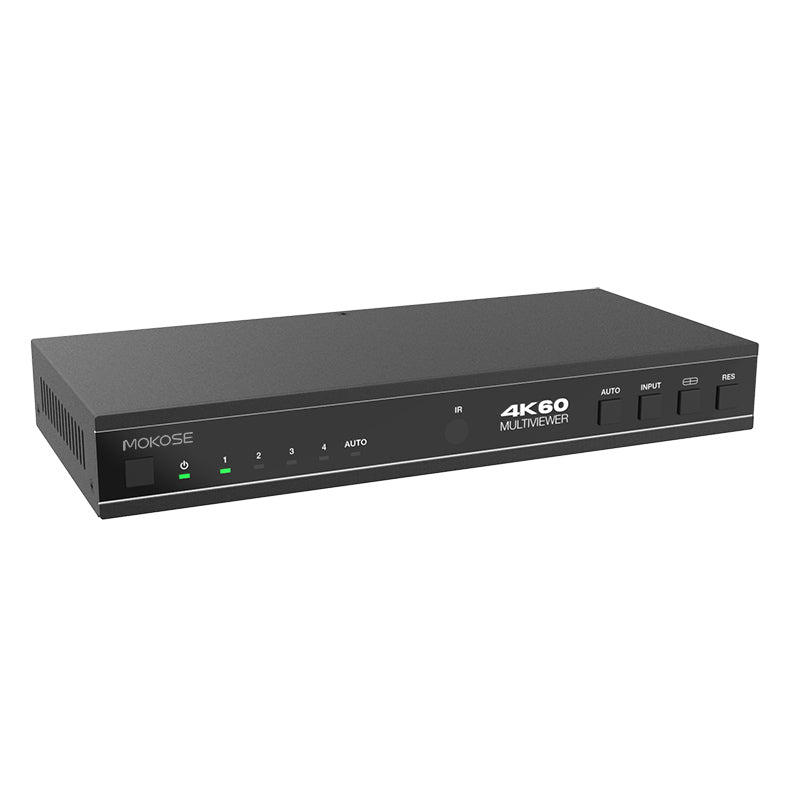

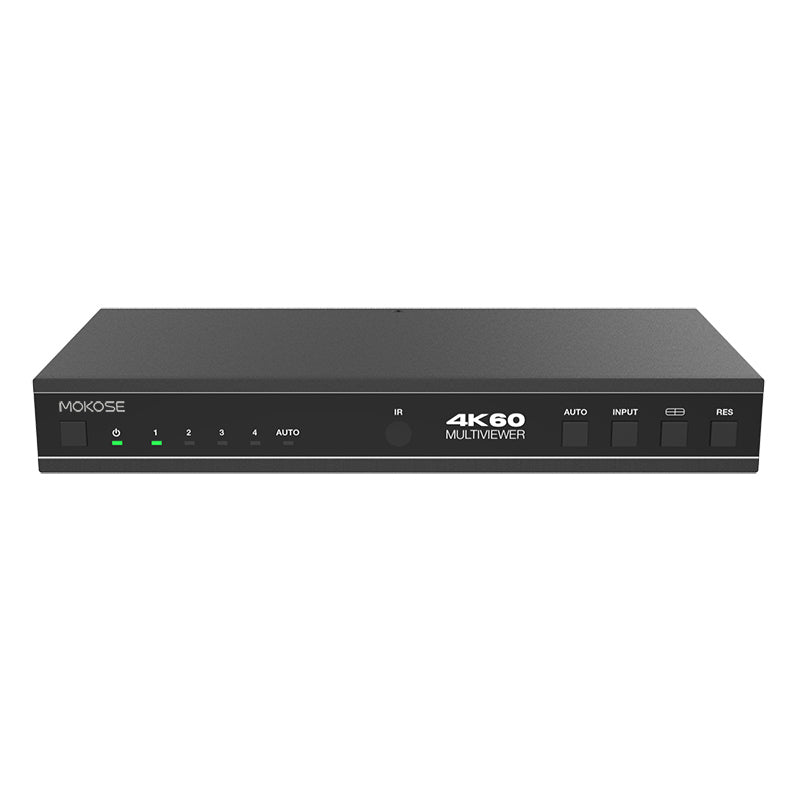

MOKOSE 4K60 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen

This 4K60 4x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input.This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.This device supports full range of input video resolutions up to 4K@60 (RB)B and audio RCA /Optical de-embedding supported for external audio distribution systems.This device can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands.

☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

☆ Support 18Gbps video bandwidth

☆ Input and output resolutions support up to 4K@60Hz

☆ Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel

☆ Seamless switching between input channels and combined multiple images on single UHD monitor

☆ Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

☆ Seamless switching on single screen display mode

☆ Fast switching on multiview display mode

☆ Audio de-embedding via analog and optical fiber audio ports

☆ Support volume control and independent audio selection

☆ Support OSD navigation for advanced setting

☆ EDID management

☆Control via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands

☆ Compact design for easy and flexible installation

Technical
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2/1.x
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@60Hz
IR Level: 5Vp-p
IR Frequency: 38KHz
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8bit
Audio Formats: HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
Analog audio [3.5mm L/R]: PCM2.0;
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.
Note: It does not support HBR audio.
ESD Protection: Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge)

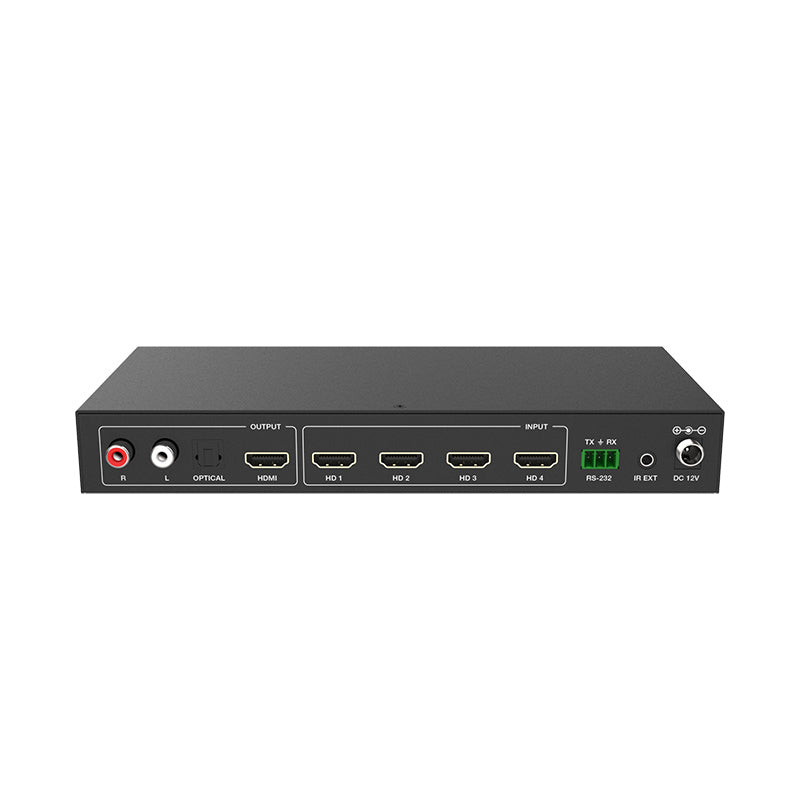

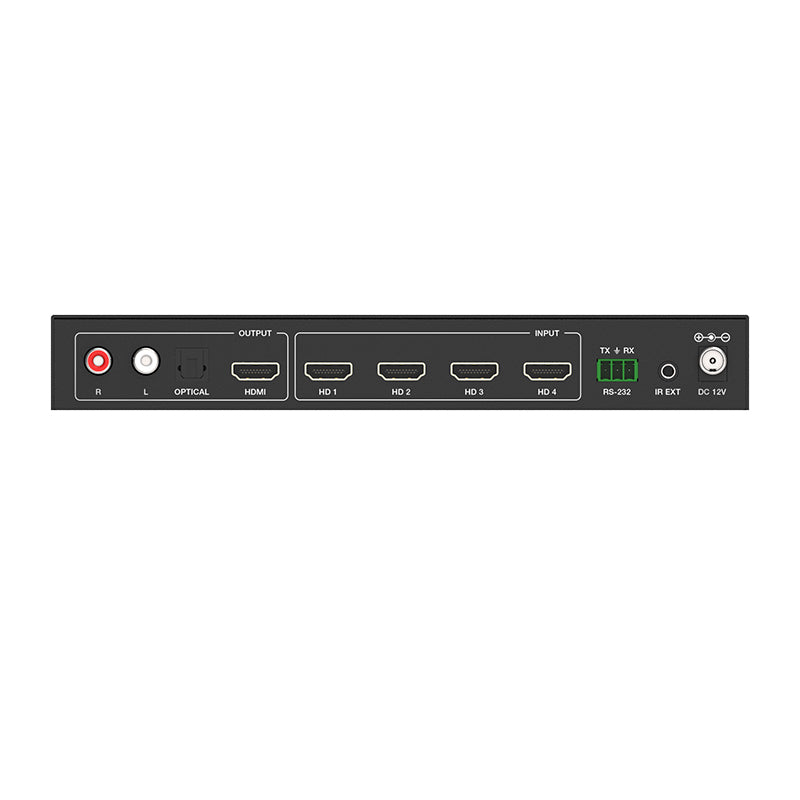

Connections
Input ports: 4x HDMI IN [Type A, 19-pin female]
Output portss: 1x HDMI OUT [Type A, 19-pin female],1x L/R OUTPUT [RCA],
1x OPTICAL OUTPUT [S/PDIF]

Control ports: 1x RS-232 [3pin-3.81mm phoenix connector], 1x IR EXT [3.5mm Stereo Mini-jack]

Mechanical
Housing: Metal Enclosure
Color: Black
Dimensions: 220mm [W] x 100mm [D] x 30mm [H]
Weight: 620g
Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption : 10W (Max)
Operation Temperature: 32°F - 104°F / 0°C - 40°C
Storage temperature: -4°F - 140°F / -20°C - 60°C
Relative Humidity: 20 - 90% RH (no condensation)
