MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens HSC20
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens HSC20
Couldn't load pickup availability
HD Video Quality - Can record 4K/30fps video, Build-in with 1/2.3" 12MP raw image Sony IMX577 Exmor R CMOS image sensor.
The camera has a built-in microphone. In order to obtain better audio, the camera can also connect to an external independent microphone, and can connect a wireless microphone to capture audio from a long distance. HDMI and SDI output without audio.

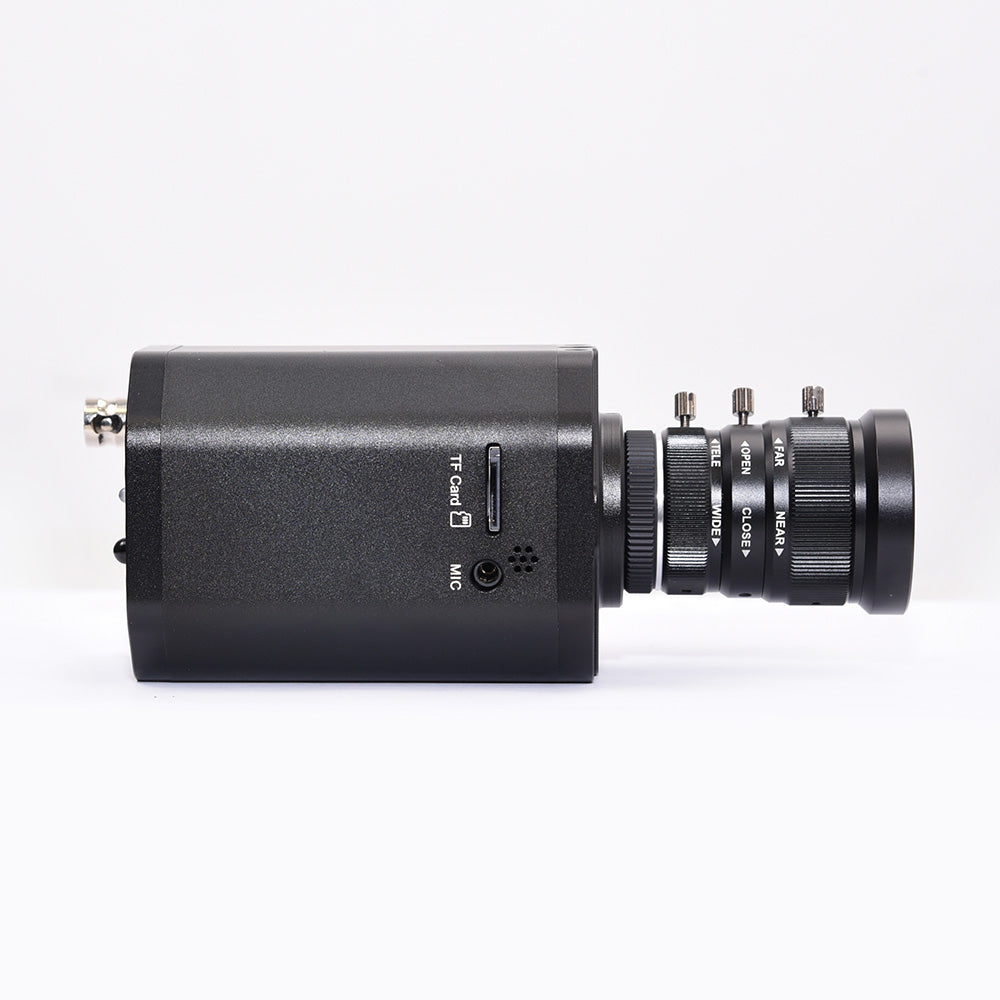

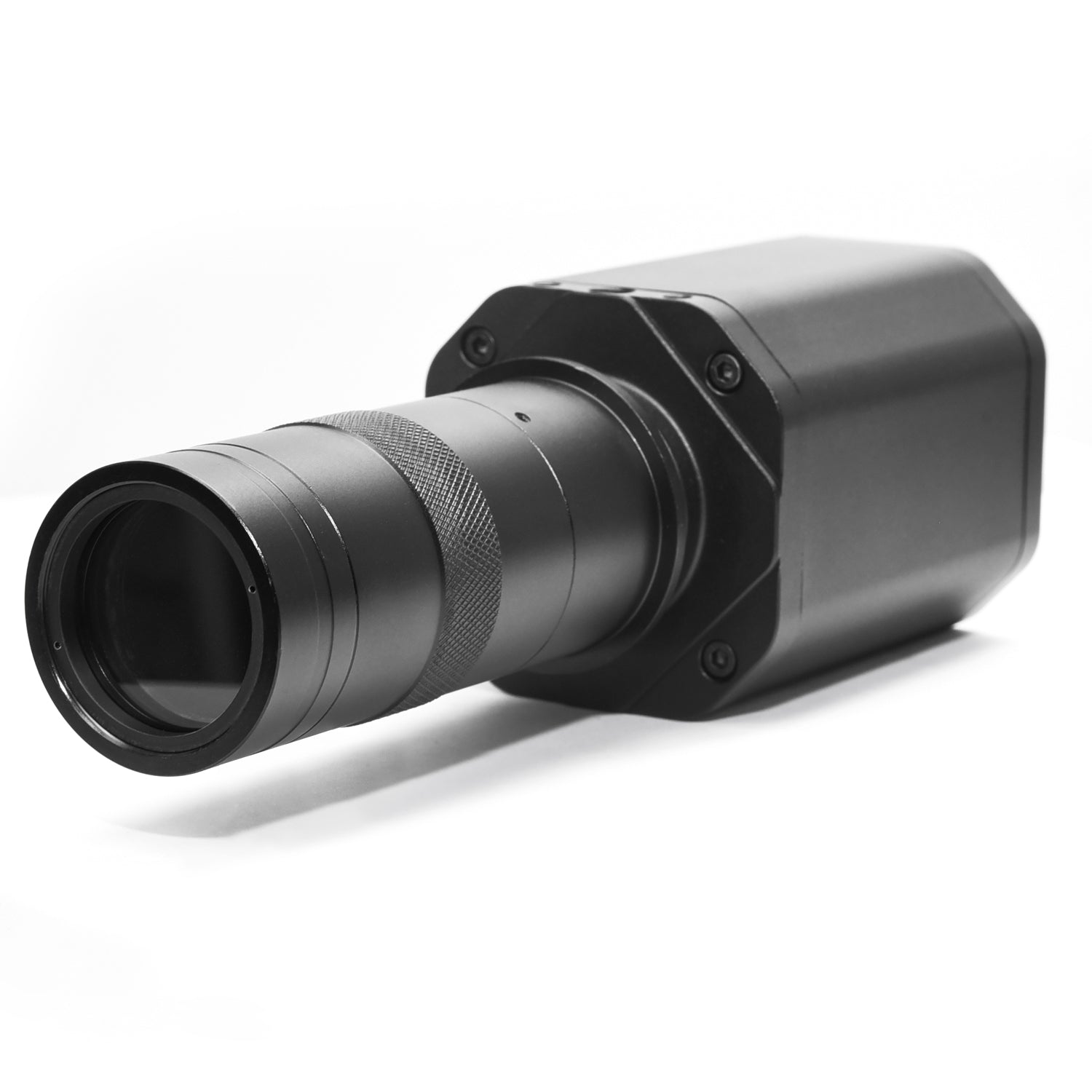

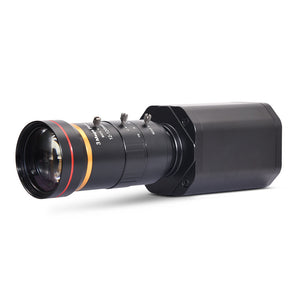

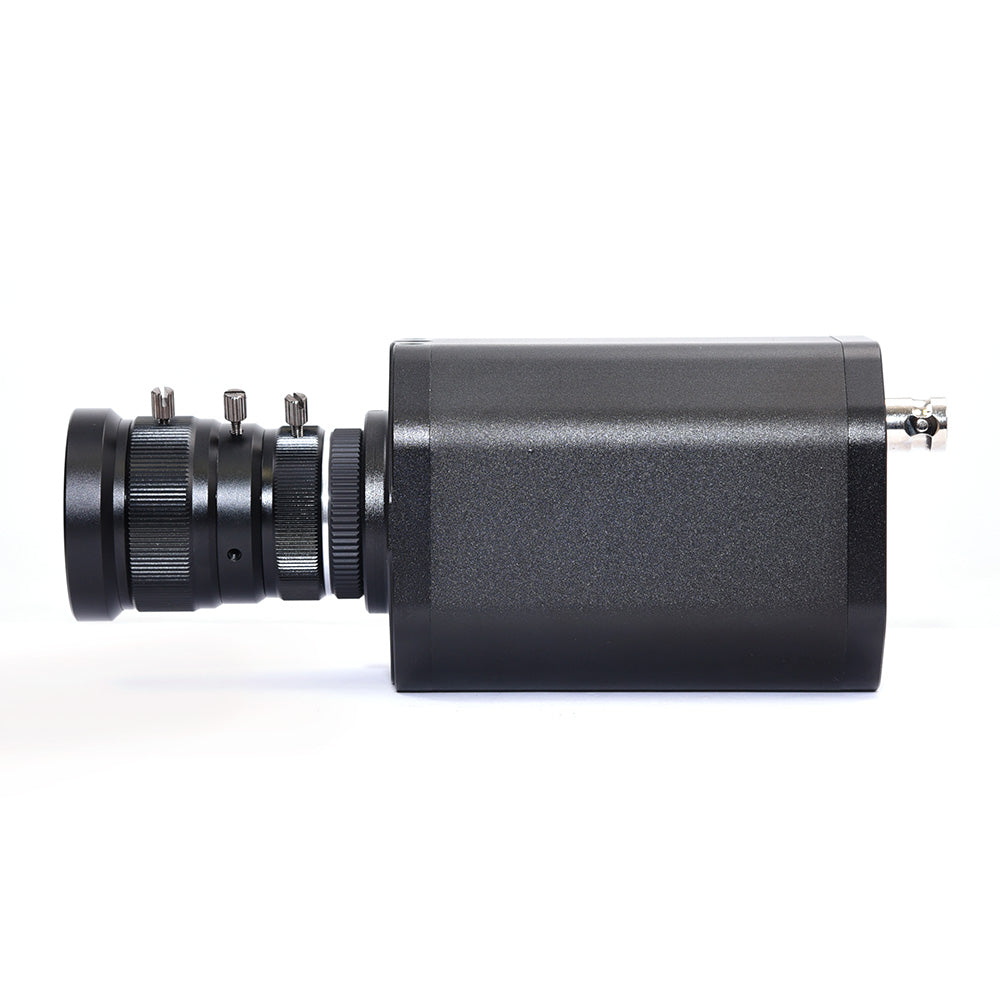

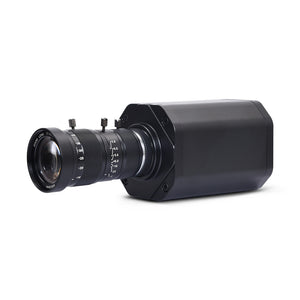

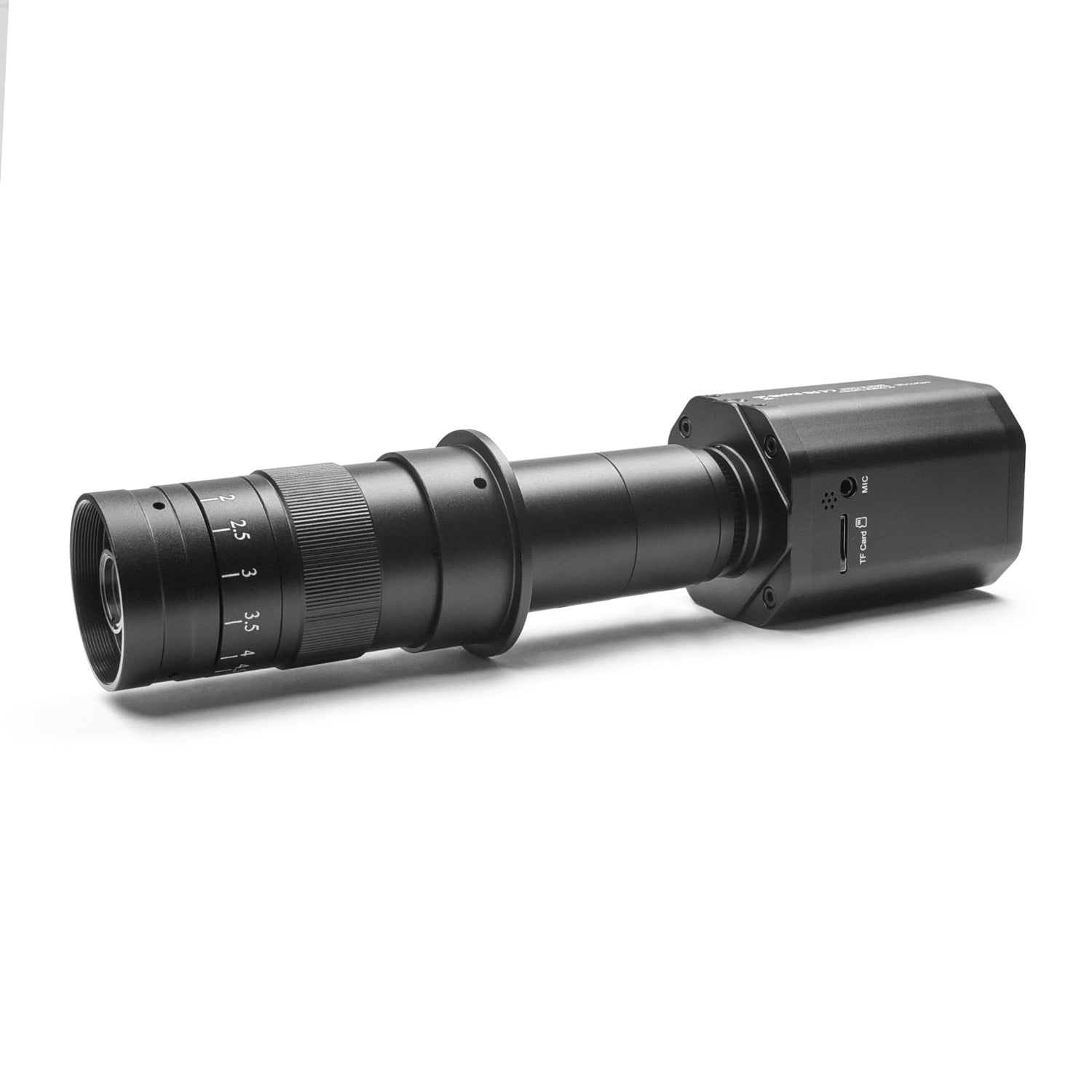

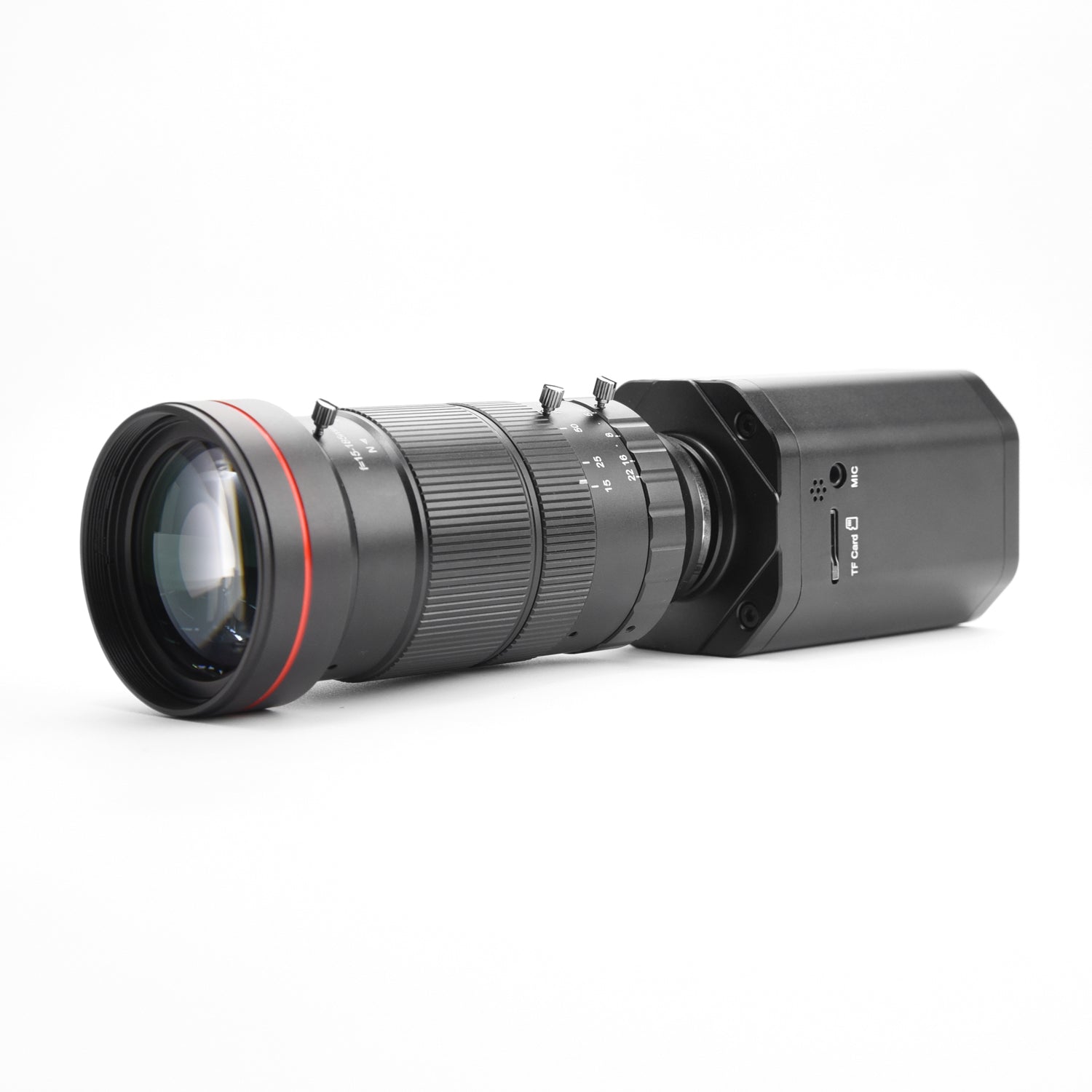

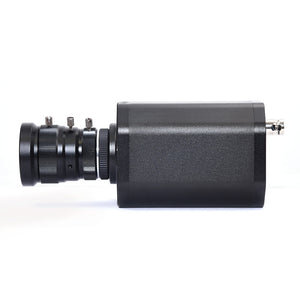

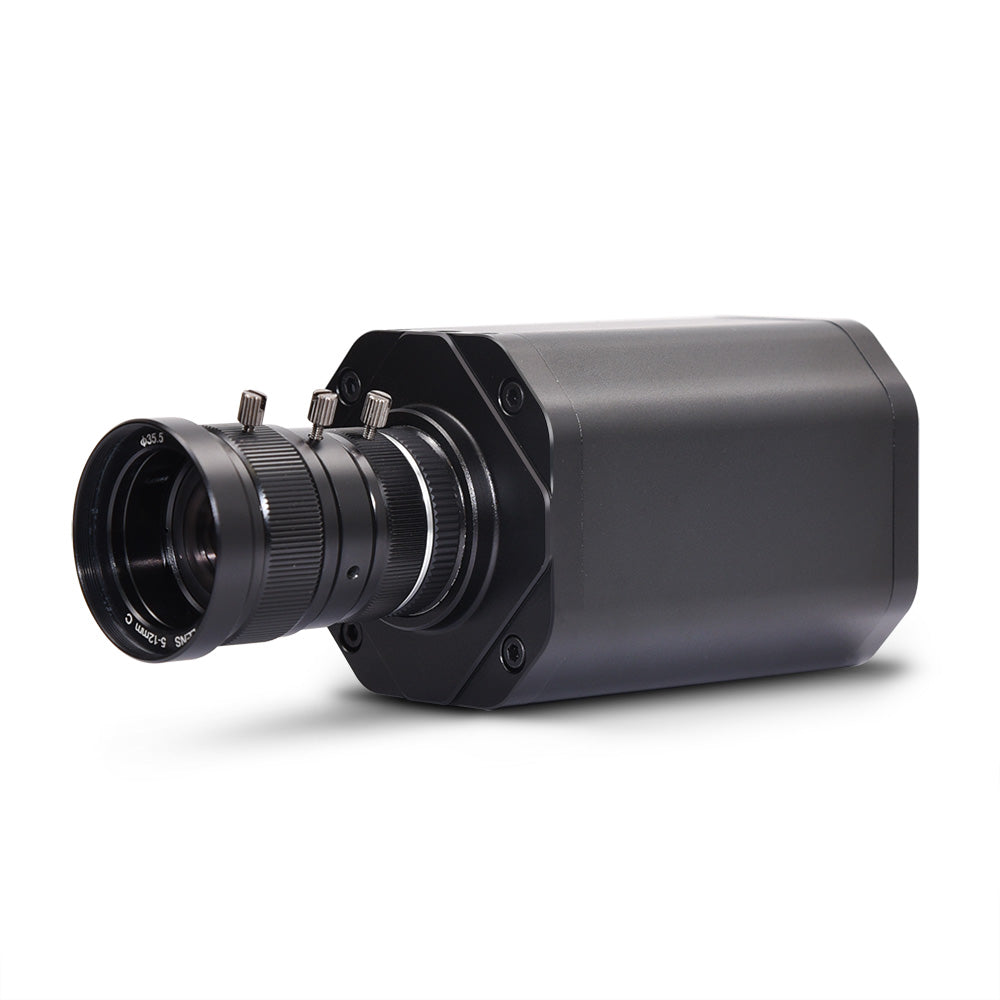

The HSC20 4K Digital Camera adopts an interchangeable lens design and using a CS/C mount lens . A large number of industrial lens groups enable the HSC20 4K Digital Camera to be widely used in industrial scenarios.
Support 3840*2160P/30/25/24fps (HDMI only) ,1080P60/50/30/25/24fps, 1080i60/50, 720P60/50fps output，1080P30 USB output. Connect to a HDMI or SDI monitor capture video show on screen for teaching, or Connect to a HDMI or SDI video capture card for small activity Live Streaming.

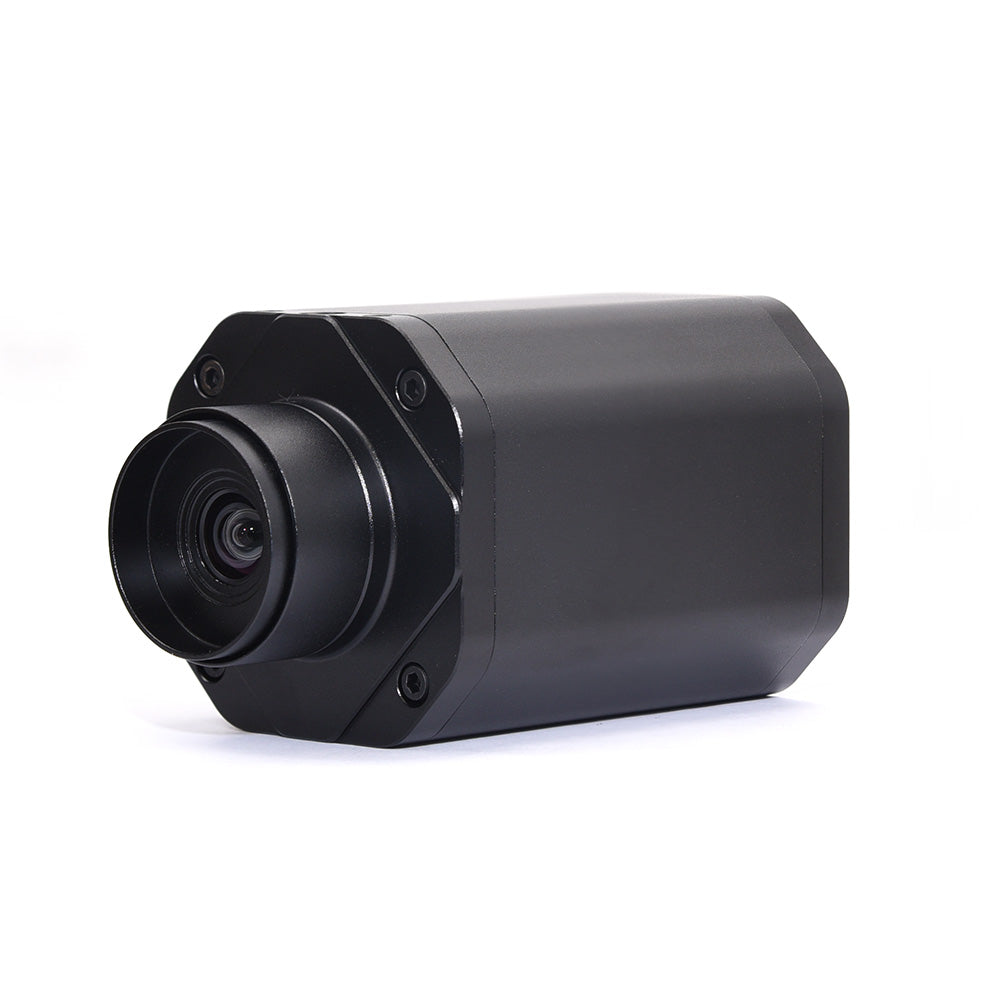

Solid aluminum shell material ,1/4 Inch Screw Thread placement easier for multi-angels placement needs .
Playback-Support photos and videos playback thru HDMI or SDI output to Monitor with Audio.
Time Lapse Video recording, Support settings 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.
Burst for photo Support settings interval time 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.

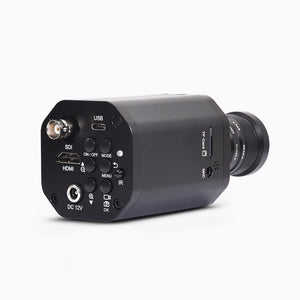

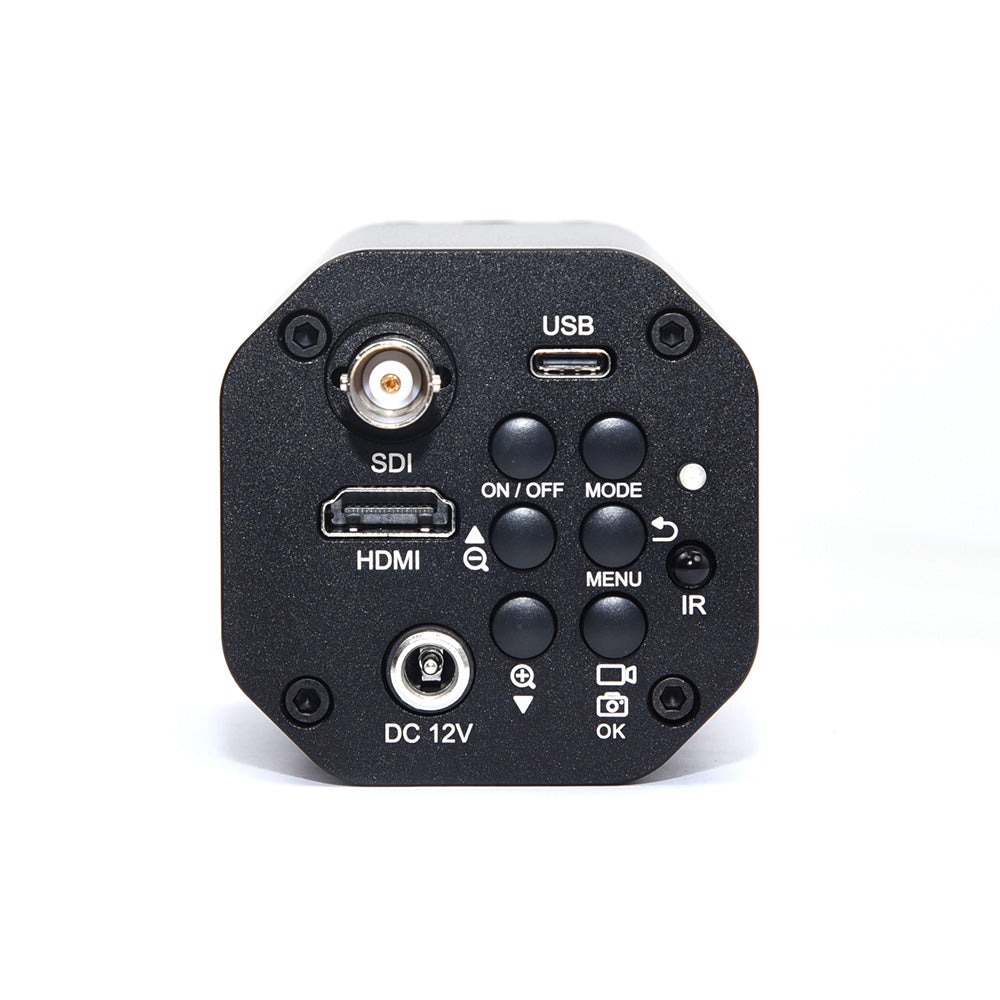

HDMI, SDI, USB double output.
| Camera Specification | |
|---|---|
| Model | HSC20 |
| Sensor | Sony IMX577 Exmor R CMOS 1/2.3” |
| Resolution | 12MP |
| Pixel Size | 1.55µm × 1.55µm |
| Record video resolution |
3840*2160@30FPS / 2560*1440@30FPS / 1920*1080@60FPS 1920*1080@30FPS / 1280*720@60FPS / 1280*720@30FPS |
| Video Format | MP4 |
| HDMI output | 2160P/30/25/24fps, 1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps Different monitors or HDMI receivers support part of resolutions only. (For example, A 1080P monitor cannot display 4K resolution) |
| SDI output | 1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps |
| External microphone | Support |
| USB output | 1920*1080@30FPS / 1280X720@30fps / 640X480@30fps |
| USB standard | UVC / UAC |
| Support system | Windows / OS X / Linux |
| Audio | Record video / Video Playback / USB Mode with Audio / HDMI and SDI Real-time output without Audio |
| Time Lapse | 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour |
| Burst | 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour |
| Digital Zoom | Support ( 1080P or 720P output，4K output not supported) |
| Remote control | Support ( HDMI or SDI Mode ), USB Mode for EV and Digital Zoom function only |
| Remote Control Control Distance |
About 5 Meters ( The remote control need aim the IR light ) |
| Power On | Auto Power On when plug ac adapter, Press camera “ON / OFF” button power on |
| Power Off | Long press camera “ON / OFF” button power off， Remote control Power off |

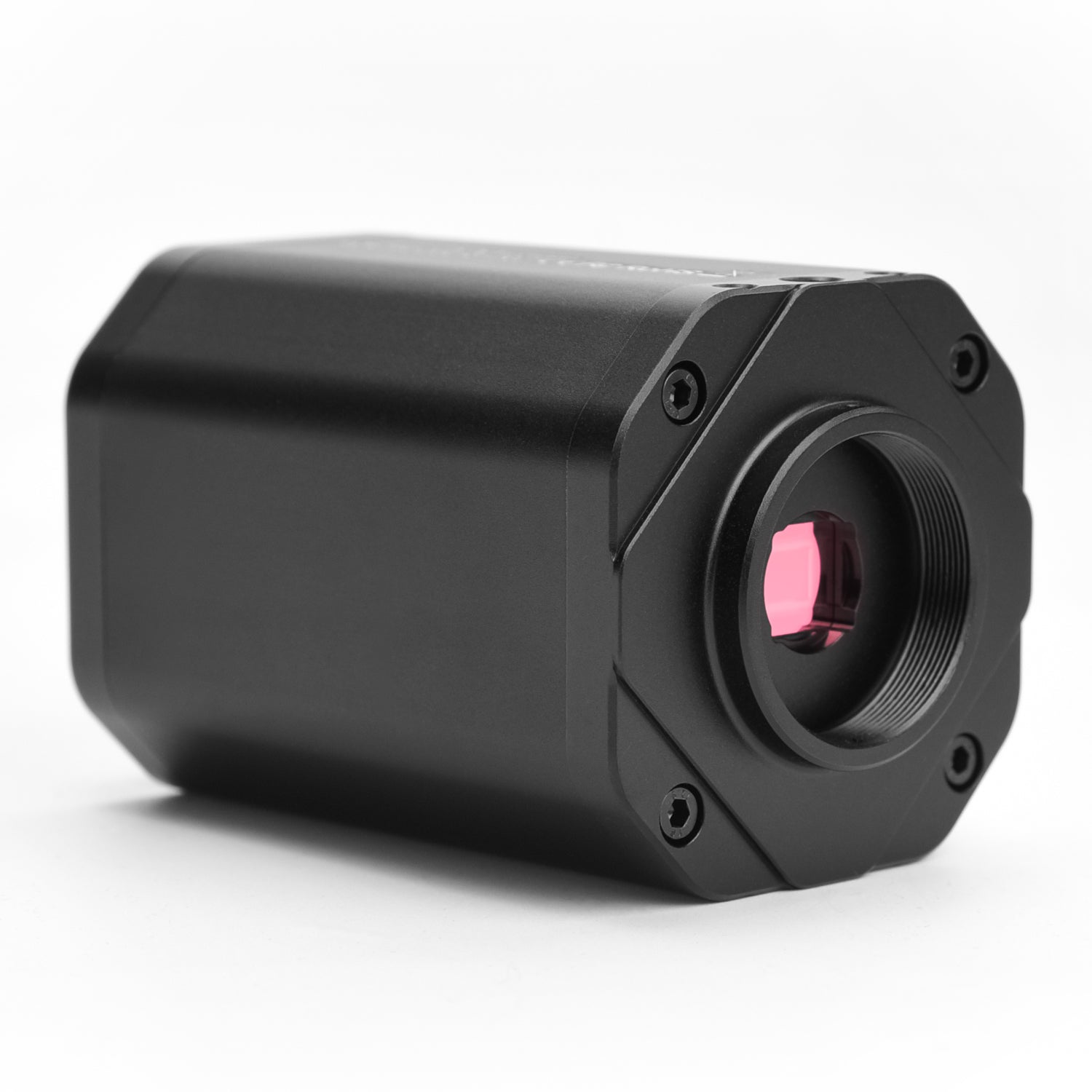

| Lens Mount | C/CS |
| Exposure | AUTO / Manual |
| ISO | Auto / Manual (100~1600) |
| Electronic shutter | Auto / Manual (1/10~1/2000S) |
| EV | Support 12 Level manual Settings |
| White Balance | AUTO / Manual |
| Storage | Support 256GB(Max) TF card, Fat32 or Exfat only |
| Power Mode（HDMI / SDI） | DC 12V 1A |
| Power Mode（usb） | USB power |
| Loop Recording | 3 / 5 / 10 mins each document Loop recording and OFF (15 mins each document at 4K) |
| Screen Orientation Change | Support screen rotation 180 degrees and Mirroring |
| Housing | Metal |
| Operating temperature | -10-75℃ |
| Camera Size （Without lens） |
100*60*60MM |
| Product Weight （Without lens） |
230g |
| Package size | 194*104*90mm |
